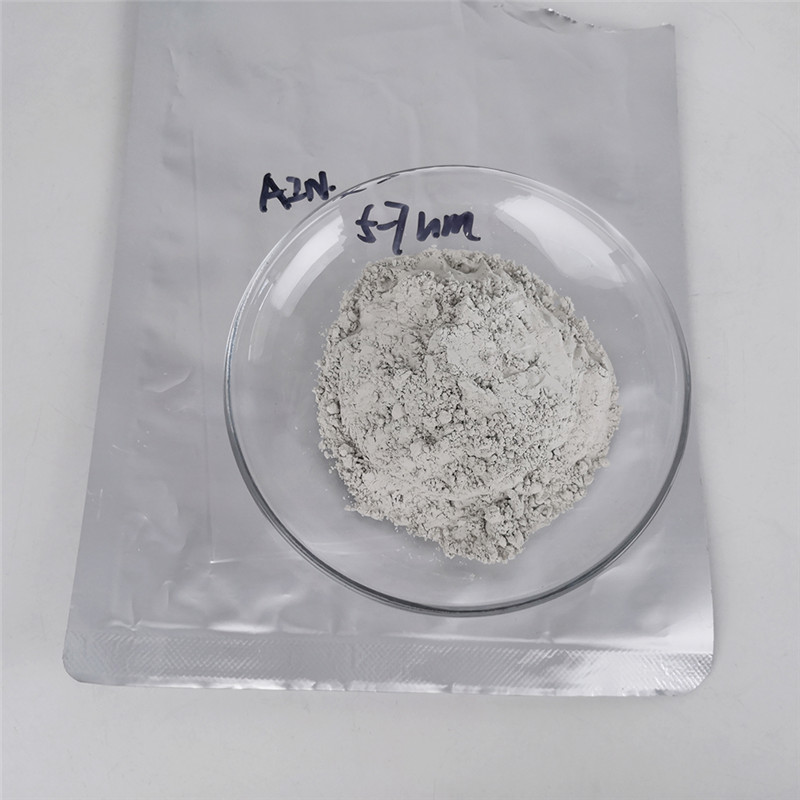

HR-F Spherical Aluminum Nitride Powder for Thermal Interface Material
Product Description
HR-F series spherical aluminum nitride filler is a product obtained through special sphere formation, nitriding purification, classification and other processes. The resulting aluminum nitride has a high spheroidization rate, small specific surface area, narrow particle size distribution and high purity. This product is widely used as a thermal interface material due to its high thermal conductivity, good fluidity and other characteristics.
Feature
High thermal conductivity
● Low specific surface area
● Good fluidity, high filling rate
● The particle size is uniform ,and the distribution is very narrow, conducive to achieve a stable match with other fillers in the application
Specification
| Technical item | Unit | HRF Series product Code | ||||
| Particle Size | HR-F30 | HR-F50 | HR-F80 | HR-F120 | ||
| (D10) | µm | 26.3 | 36.6 | 59.3 | 88.7 | |
| (D50) | µm | 36.5 | 51.1 | 81.3 | 121.6 | |
| (D90) | µm | 50.5 | 71.1 | 110.9 | 167.5 | |
| Specific Surface Area | m2/g | 0.06 | 0.05 | 0.02 | 0.01 | |
| Bulk Density | g/cm3 | 1.75 | 1.73 | 1.83 | 1.77 | |
| Tap Density | g/cm3 | 1.98 | 2.01 | 2.05 | 2.03 | |
| Moisture | % | 0.02 | 0.02 | 0.02 | 0.02 | |
| Chemical Composition | O | % | 1.28 | 1.28 | 1.28 | 1.28 |
| C | ppm | 126 | 126 | 126 | 126 | |
| Si | ppm | 40 | 40 | 40 | 40 | |
| Fe | ppm | 20 | 20 | 20 | 20 | |
| Na | ppm | 15 | 15 | 15 | 15 | |
Detailed Images
SEM
Application
* Thermal interface material: significantly improve the thermal conductivity, such as 6w/m.k thermal gel, 10w/m.k thermal pad;
* Thermally conductive engineering plastics: PVC plastics, polyurethane plastics, PA plastics, pp plastics, functional plastics, etc.;
* Thermal spray coating.

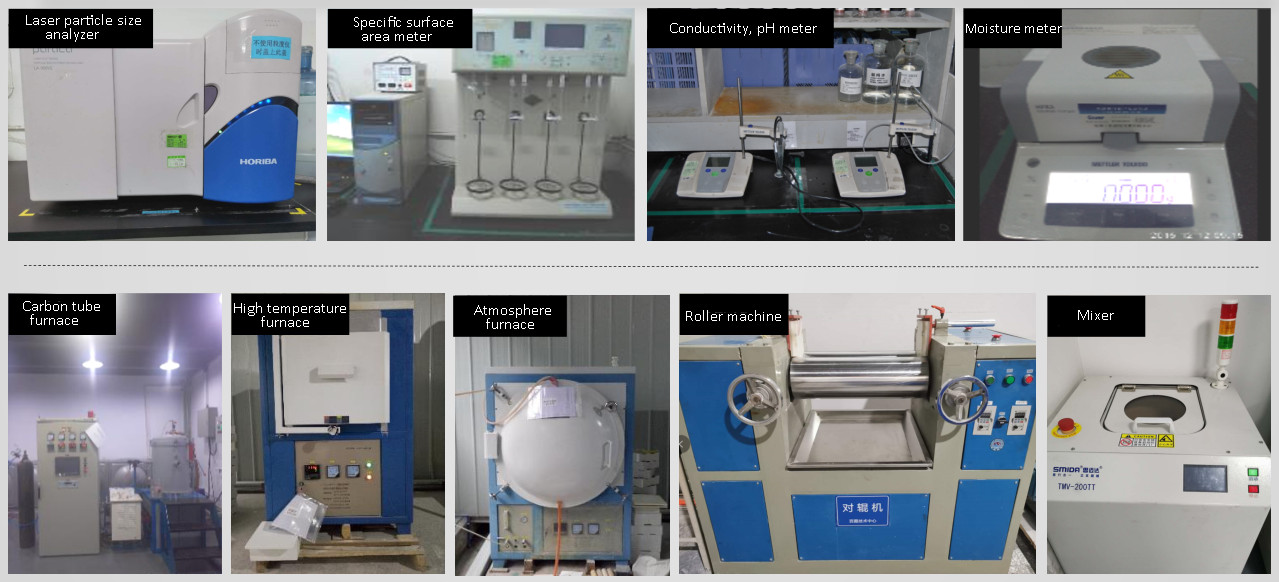

R&D and Testing Equipment
For thermal conductive powders, we have aluminum nitride powder, spherical aluminum nitride, spherical alumina, near-spherical alumina, and spherical boron nitride.
