niobium oxide powder
Product Description
Niobium pentoxide powder is an important compound material, its main chemical composition is niobium pentoxide (Nb2O5). The physical properties of niobium pentoxide powder include its crystal structure, density, melting point and boiling point. Niobium pentoxide powder also has good thermal stability, enabling it to remain stable in high temperature environments. The chemical properties of niobium pentoxide powder include its acid-base, oxidation reduction and so on. Niobium pentoxide powder is insoluble in water, but soluble in acid and base, showing a certain acid-alkali. Niobium pentoxide also has oxidative reducibility and can be oxidized or reduced at different temperatures and atmospheres. Niobium pentoxide powder has a wide range of applications in many fields. In the electronics industry, niobium pentoxide powder can be used to manufacture electronic components, optical devices and high temperature superconducting materials. In the field of coatings, niobium pentoxide powder can be used to prepare high-grade coatings and pigments. In addition, niobium pentoxide powder can also be used in the manufacture of optical glass, ceramics and catalysts.
Specification details
| Niobium Pentoxide Nb2o5 Parameter | |
| Compound Formula | Nb2O5 |
| Molecular Weight | 265.81 |
| Appearance | Powder |
| Melting Point | 1512 ℃ (2754 ℃) |
| Boiling Point | N/A |
| Density | 4.47 g/cm3 |
| Solubility in H2O | N/A |
| Exact Mass | 265.787329 |
| Monoisotopic Mass | 265.787329 |
| Powder Niobium Pentoxide Nb2o5 Specification | ||||
| Element | Nb2o5-1 | Nb2o5-2 | Nb2o5-3 | Nb2o5-4 |
| (ppm max) | ||||
| Al | 20 | 20 | 30 | 30 |
| As | 10 | 10 | 10 | 50 |
| Cr | 10 | 10 | 10 | 20 |
| Cu | 10 | 10 | 10 | 20 |
| F | 500 | 1000 | 1000 | 2000 |
| Fe | 30 | 50 | 100 | 200 |
| Mn | 10 | 10 | 10 | 20 |
| Mo | 10 | 10 | 10 | 20 |
| Ni | 20 | 20 | 20 | 30 |
| P | 30 | 30 | 30 | 30 |
| Sb | 50 | 200 | 500 | 1000 |
| Si | 50 | 50 | 100 | 200 |
| Sn | 10 | 10 | 10 | 10 |
| Ta | 20 | 40 | 500 | 1000 |
| Ti | 10 | 10 | 10 | 25 |
| W | 20 | 20 | 50 | 100 |
| Zr+Hf | 10 | 10 | 10 | 10 |
| LOI | 0.15% | 0.20% | 0.30% | 0.50% |
| High-purity niobium oxide powder | |||
| Grade | FHN-1 | FHN-2 | |
| Impurity Content(ppm,max) | Nb2O5 | 99.995min | 99.99min |
| Ta | 5 | 15 | |
| Fe | 1 | 5 | |
| Al | 1 | 5 | |
| Cr | 1 | 2 | |
| Cu | 1 | 3 | |
| Mn | 1 | 3 | |
| Mo | 1 | 3 | |
| Ni | 1 | 3 | |
| Si | 10 | 10 | |
| Ti | 1 | 3 | |
| W | 1 | 3 | |
| Pb | 1 | 3 | |
| Sn | 1 | 3 | |
| F | 50 | 50 | |

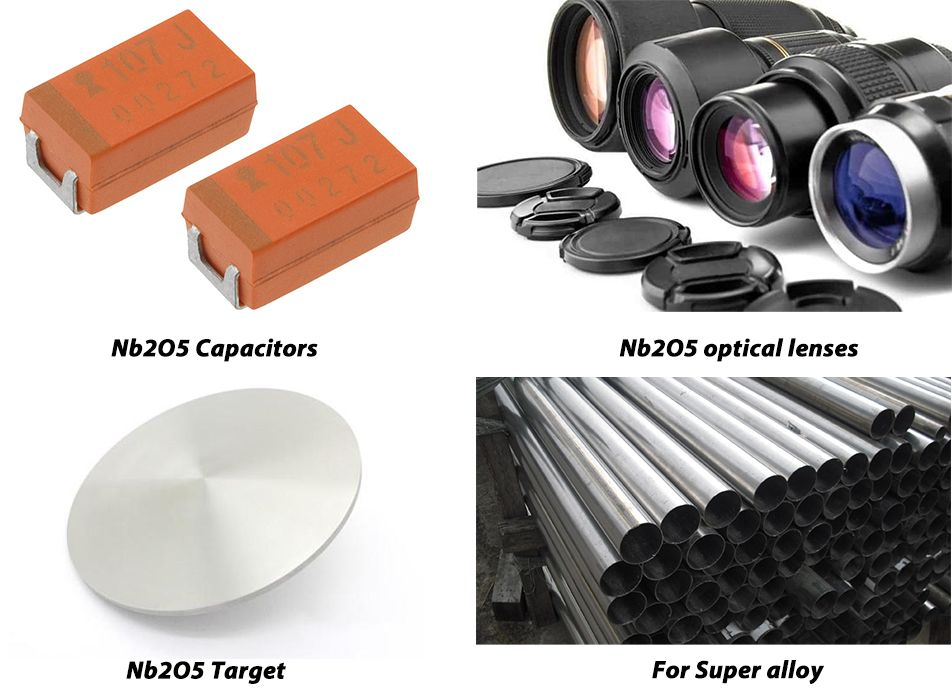

Application
Quality control system
Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.
Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
