Porous titanium plate
Product Description

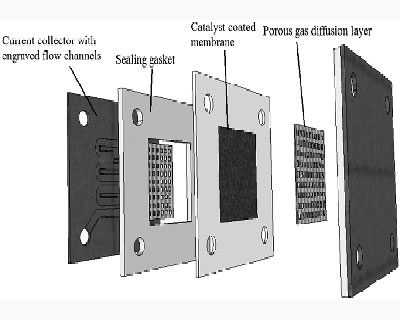

Porous titanium gas diffusion layer is mainly used in hydrogen fuel cell Porosity 0-70%, thickness more than 0.4mm, customized size, porous titanium sheet, widely used in fuel cell, water treatment, various advanced filters.
Advanced technology guarantees high strength, high permeability, corrosion resistance and excellent water and gas management performance
Specification
| Filltering level | Filteration Precision (um) | Maximum Pore size (um) | Permeability
Coefficient 10-12㎡ |
Permeability
m³/h.㎡.kpa
|
Compression Strength Mpa/cm² | Maximum Operating Temperatures
℃
|
| T1 | 50 | 160 |
3.02 |
800 | 3.0 | 300 |
| T2 | 30 | 100 | 2.01 | 500 | 3.0 | 300 |
| T3 | 20 | 60 | 1.01 | 250 | 3.0 | 300 |
| T4 | 10 | 30 | 0.15 | 120 | 3.0 | 300 |
| T5 | 5 | 15 | 0.04 | 40 | 3.0 | 300 |
| T6 | 2 | 10 | / | 1.5 | 3.0 | 300 |
| T7 | 1 | 6 | / | 5 | 3.0 | 300 |
| T8 | 0.5 | 4 | / | 3 | 3.0 | 300 |
| T9 | 0.2 | 2.5 | / | 1.5 | 3.0 | 300 |
Application
Quality control system
Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.
Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
